NeuroWave XL
Focus Shockwave Therapy
NeuroWave XL
Focus Shockwave Therapy
WHAT IS ELECTROMAGNETIC
FOCUS SHOCKWAVE
Electromagnetic focus shockwave technology is a newer generation technology. It discharges high-voltage electricity to the electric coil and to form a powerful pulse electromagnetic field energy. The electromagnetic wave generates a deep shock wave in the water. Its advantage is that the output energy is extremely stable, the focal length is long, and the lifespan of the electromagnetic generator is also long-lasting and stable.
NeuroWave XL can provide deeper tissue with more depth penetration than radial waves, focusing its output on more localized and deeper regions. The position of the applicator on the skin is minimally affected, limiting damage to the surface skin and underlying soft tissues (safer and more comfortable).
NeuroWave XL treats at defined spots within the body and is further adapted depending on the required depth. This accuracy feature makes Focused Shock Wave Therapy much better for treating deeper issues within the body
WHAT IS ELECTROMAGNETIC FOCUS SHOCKWAVE
Electromagnetic focus shockwave technology is a newer generation technology. It discharges high-voltage electricity to the electric coil and to form a powerful pulse electromagnetic field energy. The electromagnetic wave generates a deep shock wave in the water. Its advantage is that the output energy is extremely stable, the focal length is long, and the lifespan of the electromagnetic generator is also long-lasting and stable.
NeuroWave XL can provide deeper tissue with more depth penetration than radial waves, focusing its output on more localized and deeper regions. The position of the applicator on the skin is minimally affected, limiting damage to the surface skin and underlying soft tissues (safer and more comfortable).
NeuroWave XL treats at defined spots within the body and is further adapted depending on the required depth. This accuracy feature makes Focused Shock Wave Therapy much better for treating deeper issues within the body
mechanism
The electromagnetic shockwave is based on the physical principle of electromagnetic induction. It enables very precise and highly sensitive dosing of the applied shock wave energy. The shock wave source uses a special coil to focus the shock waves. Shock waves are generated in water outside the body and then transmitted to the biological tissue.
Shock wave generation
focal zone
The focal zone is the area of maximum energy intensity.
Its size is basically independent of the selected energy level. By contrast, the size of the treatment zone depends on the selected energy level and is generally larger than the focal zone.
Pressure distribution and focal zone
mechanism
The electromagnetic shockwave is based on the physical principle of electromagnetic induction. It enables very precise and highly sensitive dosing of the applied shock wave energy. The shock wave source uses a special coil to focus the shock waves. Shock waves are generated in water outside the body and then transmitted to the biological tissue.
Shock wave generation
focal zone
The focal zone is the area of maximum energy intensity.
Its size is basically independent of the selected energy level. By contrast, the size of the treatment zone depends on the selected energy level and is generally larger than the focal zone.
Pressure distribution and focal zone

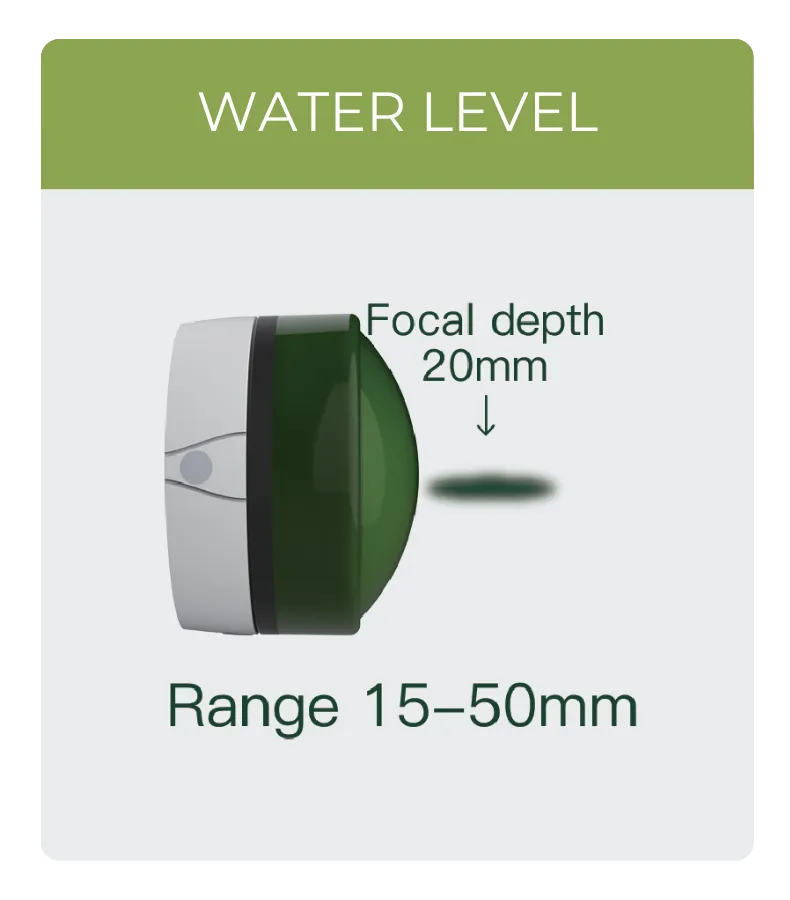

penetration depth
Dynamic penetration depth control. Adjust shock wave penetration depth by touch screen and energy levels by button on applicator. No need gel pads.
penetration depth
Dynamic penetration depth control. Adjust shock wave penetration depth by touch screen and
energy levels by button on applicator. No need gel pads.
comfort treatment
Not only is the effectiveness better with Focused-ESWT, but the skipping-the-skin part means you don't stimulate the skin sensory network; this leads to a more comfortable session. And due to the comfort levels being better, higher doses can often be used.
Deep Energy
comfort treatment
Not only is the effectiveness better with Focused-ESWT, but the skipping-the-skin part means you don't stimulate the skin sensory network;
this leads to a more comfortable session. And due to the comfort levels being better, higher doses can often be used.
Deep Energy

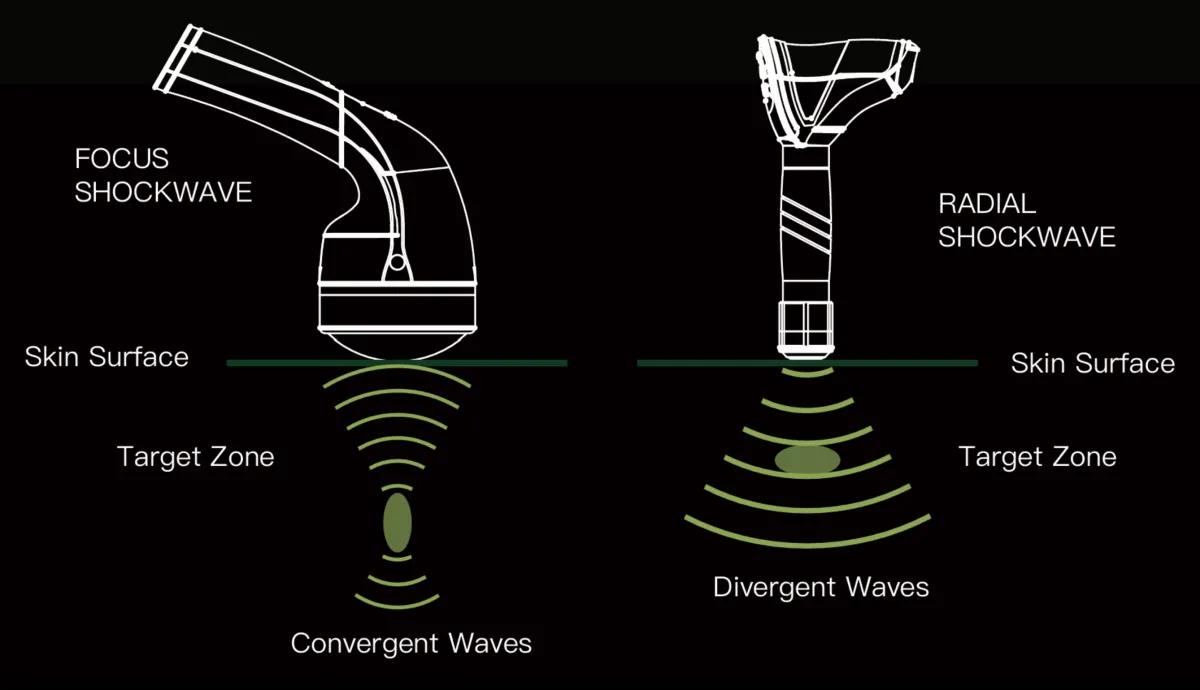

RSWT VS FSWT

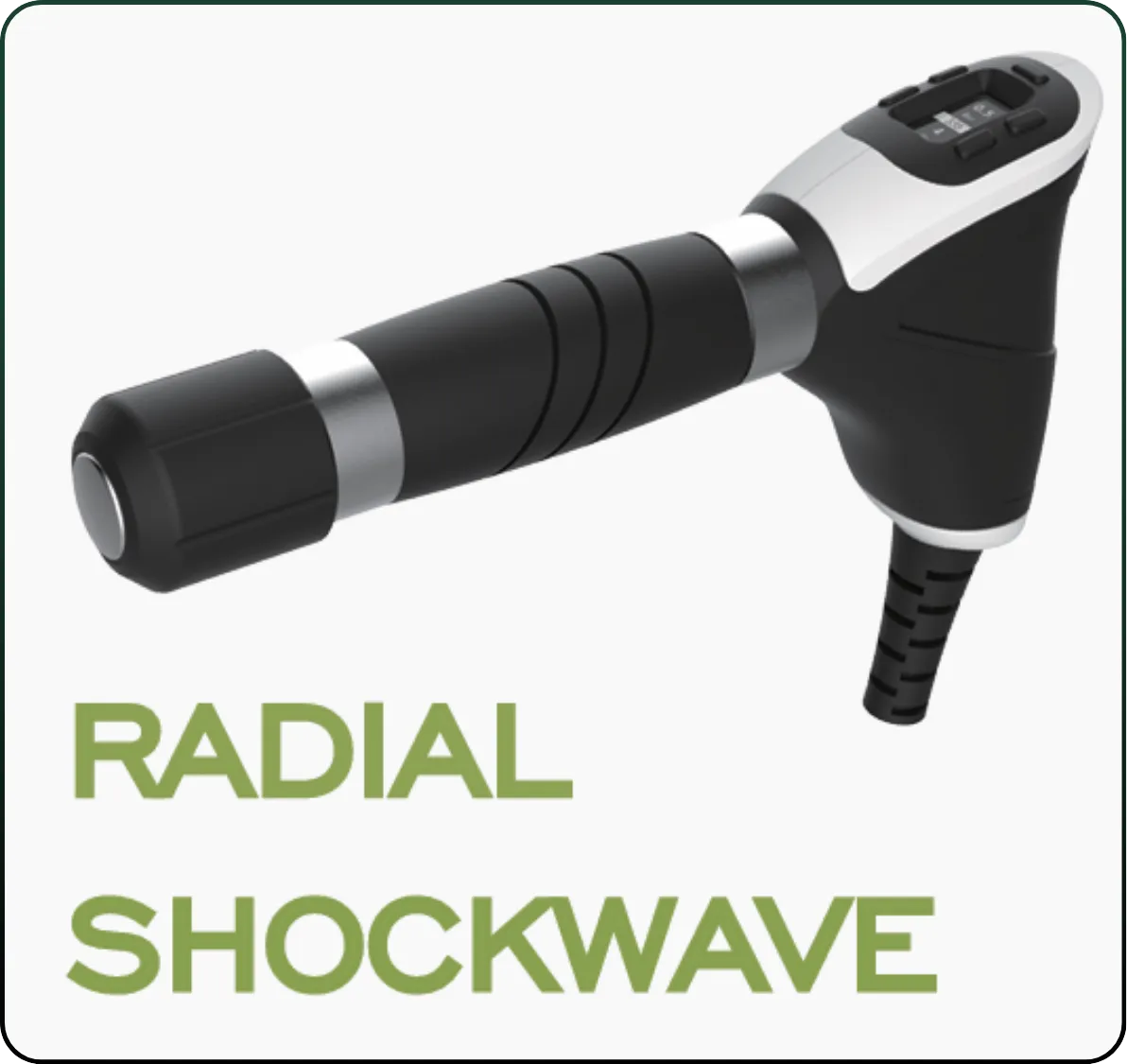

RSWT
Divergent Wave
0-35mm
Slow
Superficial Mechanica
Superficial Mechanica
Superficial Mechanica
Superficial Mechanica
Superficial Mechanica
Superficial Mechanica
Superficial Mechanica

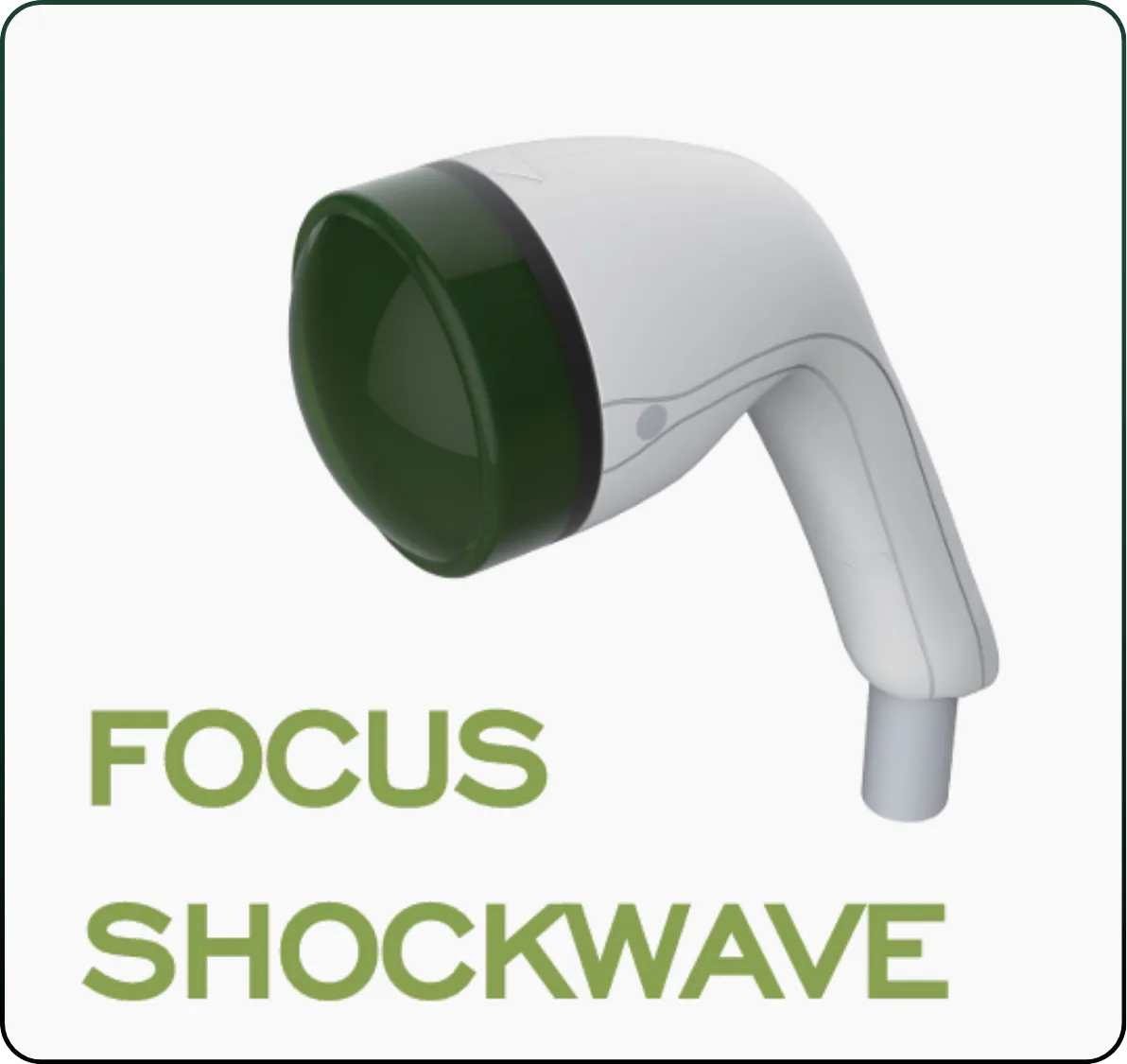

FSWT
Convergent Wave
0-65mm
Fast
Deep Mechanical
Skin, muscle, bones
Less
Once a week
5 minutes
Physiotherapy, orthopaedics, sport medicine,
urology, dermatology, cardilogy, veterinary
Erectile dysfunction, wound treatment
RSWT VS FSWT
RSWT
Divergent Wave
0-35mm
Slow
Superficial Mechanica
Superficial Mechanica
Superficial Mechanica
Superficial Mechanica
Superficial Mechanica
Superficial Mechanica
Superficial Mechanica
FSWT
Convergent Wave
0-65mm
Fast
Deep Mechanical
Skin, muscle, bones
Less
Once a week
5 minutes
Physiotherapy, orthopaedics, sport medicine,
urology, dermatology, cardilogy, veterinary
Erectile dysfunction, wound treatment
FEATURES
Game-changing and affordable focus shockwave
Wider clinical applications
Well defined, precise focus – perfect for diagnosis and therapy
Wide range of energy settings with a pulse rate of up to 4 H
12.1 inch large touch screen
User-friendly software with treatment protocols and preset parameters
No gel pad Indications with treatment parameters
Easy-to-operate handle with intensity adjustment buttons
SINGLE HANDLE
NO GEL PAD
PRECISE TREATMENT
CLINIC PROTOCOL
AUTO WATER CIRCULATION
LONG LASTING RESULTS
FEATURES
Game-changing and affordable focus shockwave
Wider clinical applications
Well defined, precise focus – perfect for diagnosis and therapy
Wide range of energy settings with a pulse rate of up to 4 H
12.1 inch large touch screen
User-friendly software with treatment protocols and preset parameters
No gel pad Indications with treatment parameters
Easy-to-operate handle with intensity adjustment buttons
SINGLE HANDLE
NO GEL PAD
PRECISE TREATMENT
CLINIC PROTOCOL
AUTO WATER CIRCULATION
LONG LASTING RESULTS

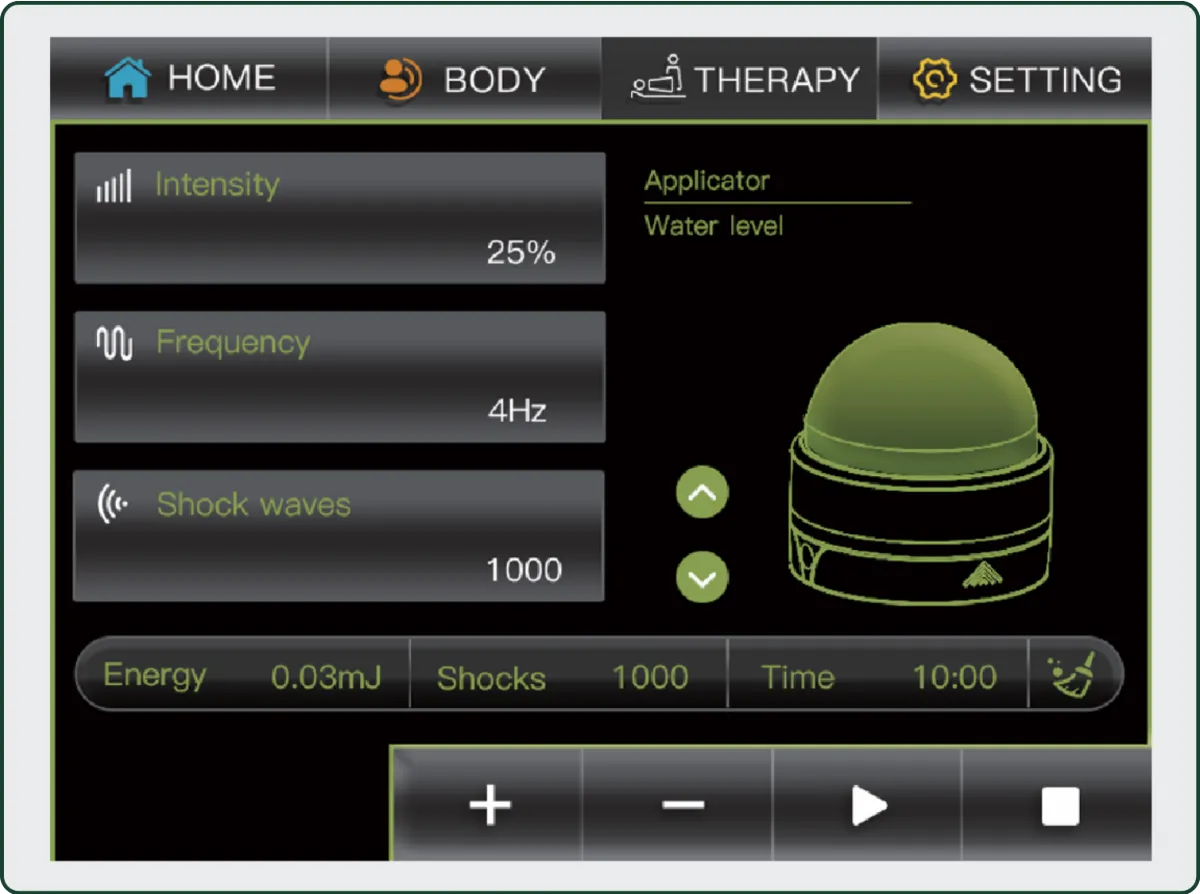

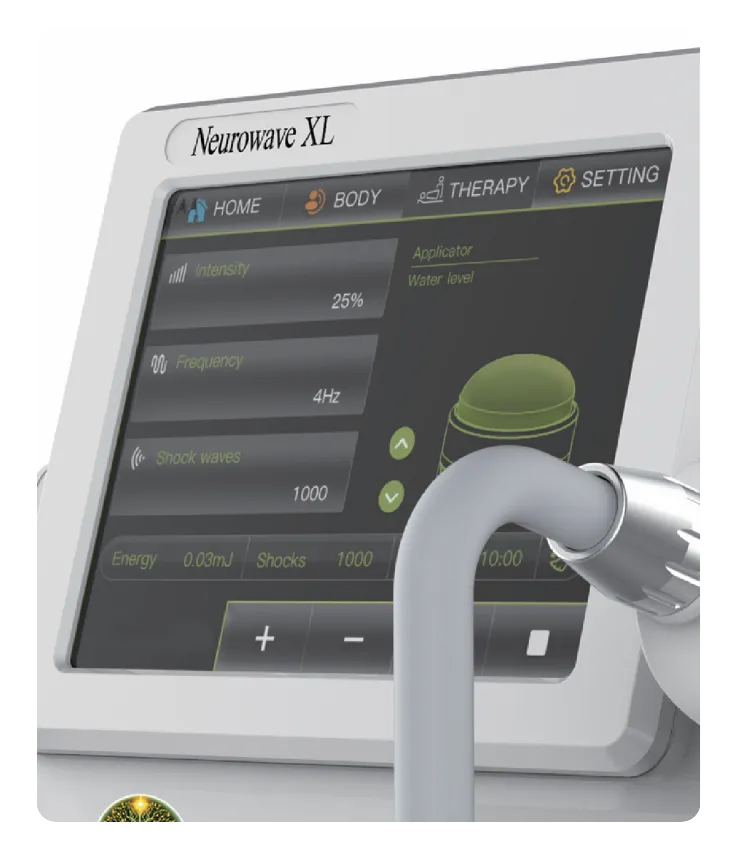

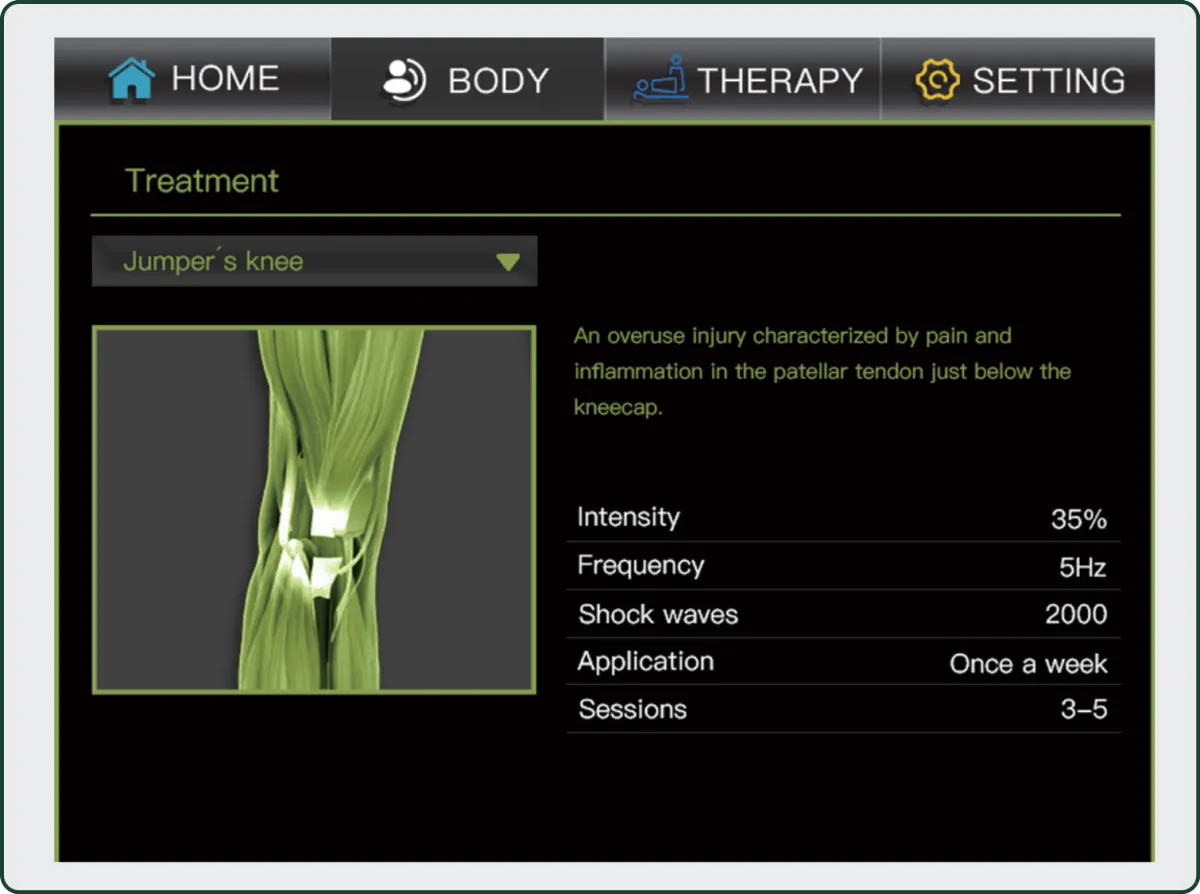

INTERFACE
Easy to use

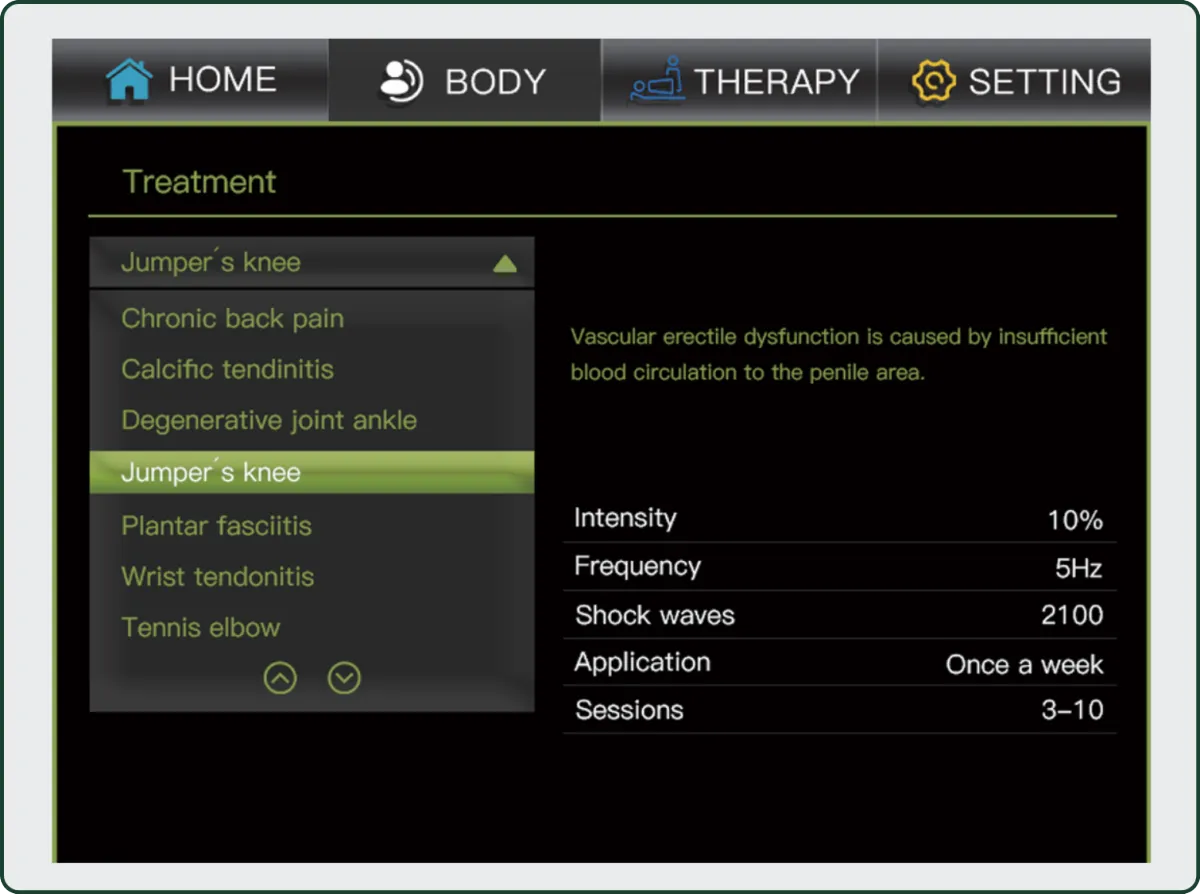

Indications with treatment parameters
Conditions protocol

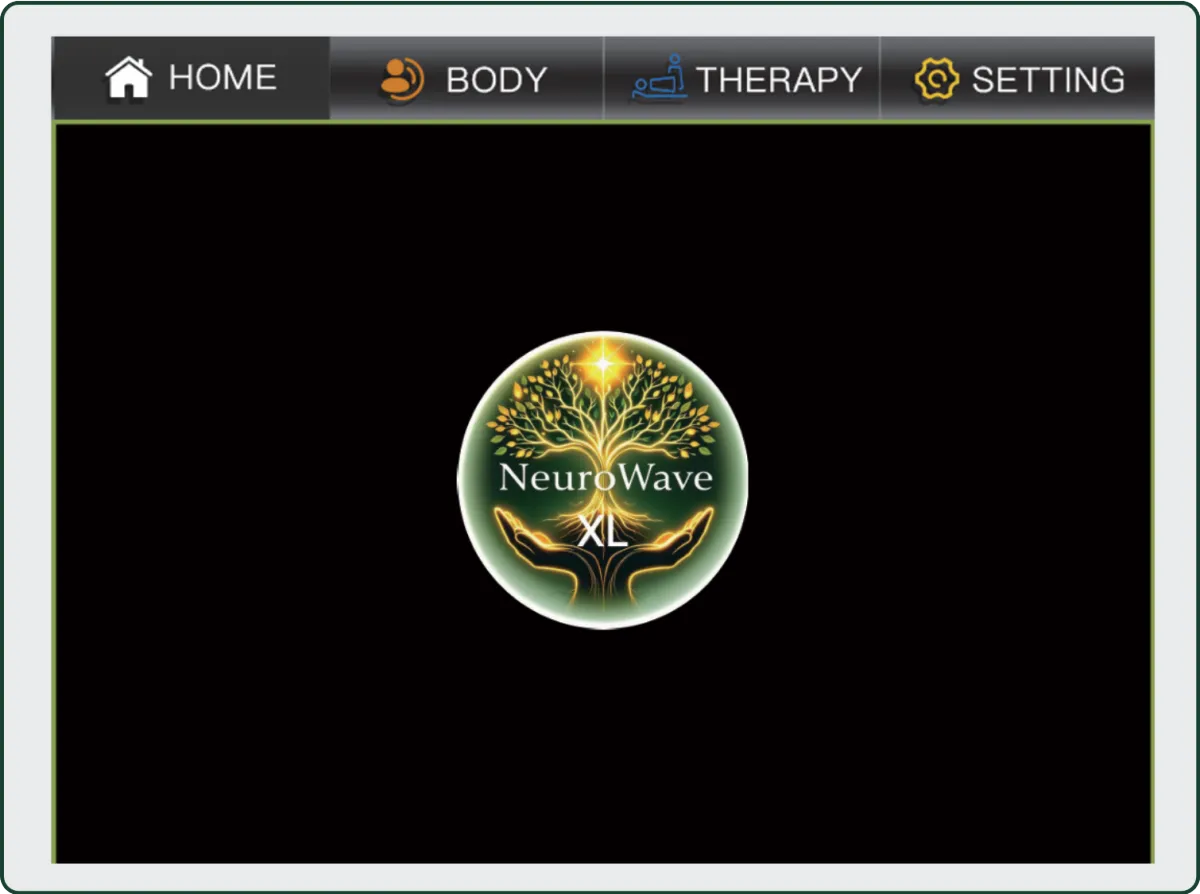

Your own brand logo
INTERFACE
Easy to use
Indications with treatment parameters
Conditions protocol
Your own brand logo

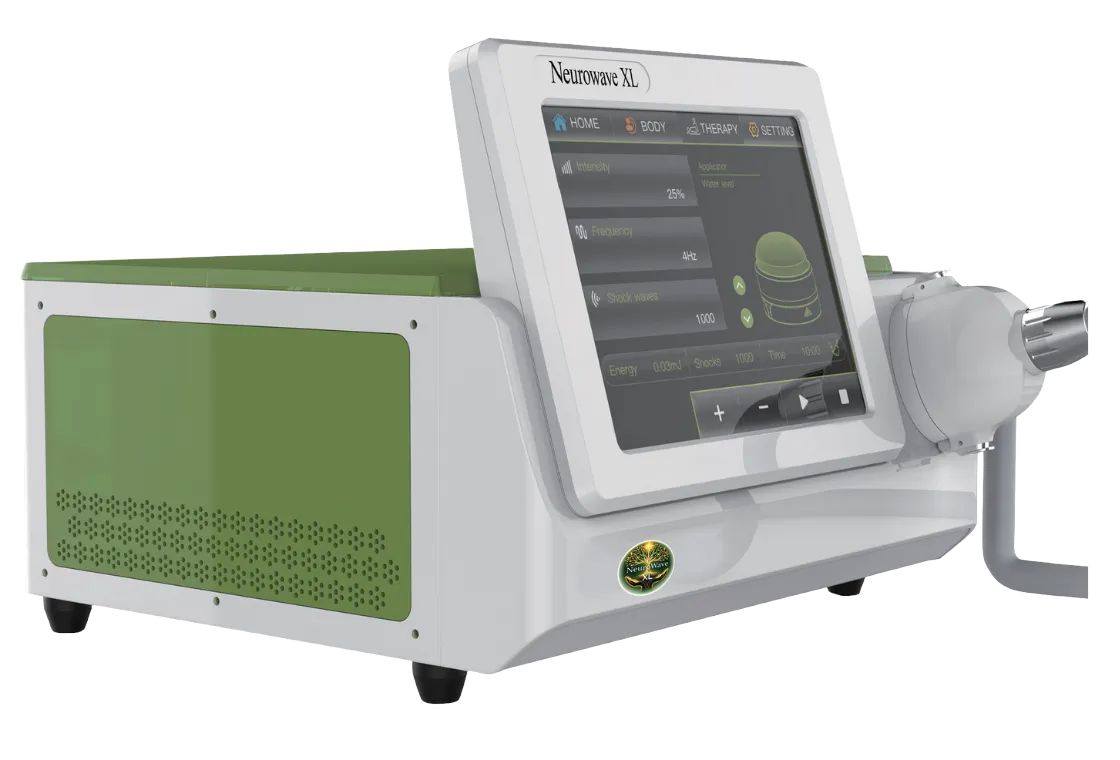

Technical Data
Model:
NeuroWave XL
Power voltage
Penetration depth
Frequency
Pressure range
Energy
Voltage
Applicator
≤400W
0-65mm
1-4Hz
5-50MPA
0.26-0.39 mj/mm²
100-110V or 220-240V
1PCS
Screen size

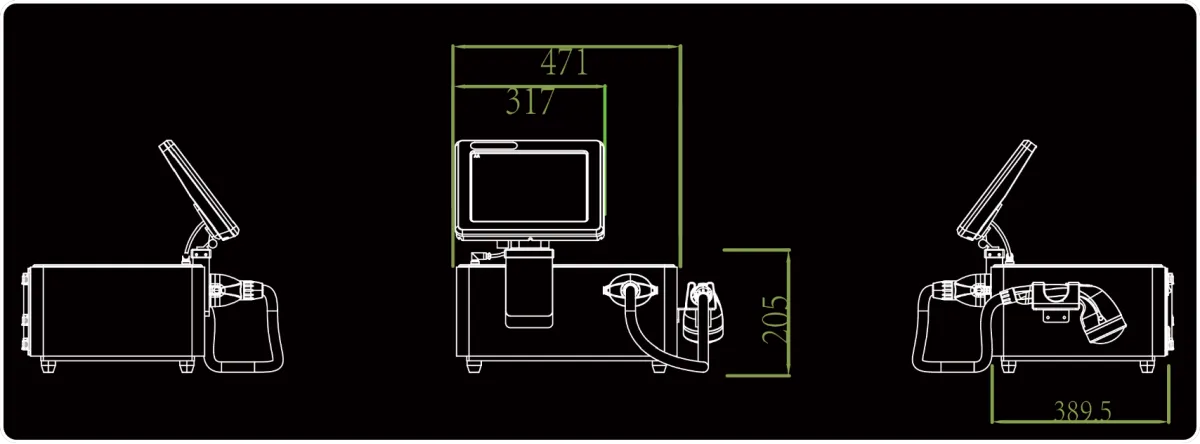

Dimensions
Net weight
12.1 inches
47*37*23CM
30kg
Technical Data
Model:
Power voltage
Penetration depth
Frequency
Pressure range
Energy
Voltage
Applicator
NeuroWave XL
≤400W
0-65mm
1-4Hz
5-50MPA
0.26-0.39 mj/mm²
100-110V or 220-240V
1PCS
Screen size
Dimensions
Net weight
12.1 inches
47*37*23CM
30kg
